Angular SPA Authentication with Keycloak: No Backend Required

In this post, we’ll learn how to integrate Keycloak into an Angular SPA without writing a single line of backend code.

Prerequisites

This is the list of all the prerequisites:

Node.js 22+
Angular CLI 20+
An installed Keycloak (v26+) server
Basic Angular and TypeScript knowledge
Docker and Docker Compose
Visual Studio Code or another IDE
Familiarity with HTTP concepts and browser security

Verify your setup:

node --version     # v22.x
ng version         # Angular CLI: 20.x
docker --version   # Docker version 26+

Overview

Before writing code, we need to understand why this is safe.

Why PKCE Makes Browser-Only Auth Acceptable

Traditional OAuth 2.0 confidential clients use a client secret. Browsers can’t keep secrets — anything embedded in JavaScript is visible in DevTools. PKCE (Proof Key for Code Exchange, RFC 7636) was designed to solve exactly this:

The app generates a random code_verifier (43–128 character random string)
It computes code_challenge = BASE64URL(SHA256(code_verifier))
The code_challenge is sent to Keycloak at redirect time
Keycloak stores the challenge and redirects back with an authorization code
The app exchanges code + code_verifier (the original, unhashed value) for tokens
Keycloak verifies: BASE64URL(SHA256(code_verifier)) === stored code_challenge

An attacker who intercepts the authorization code cannot exchange it without the original code_verifier, which was only ever held in JavaScript memory and never transmitted. keycloak-js handles all of this automatically.

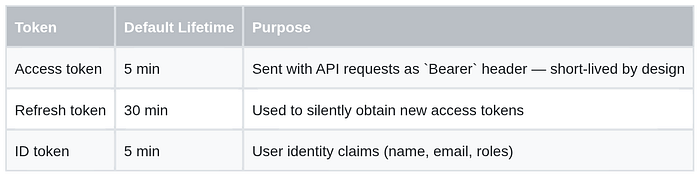

Token Types

Access tokens are JWTs. Your Angular app forwards them opaquely in HTTP headers. Your backend validates signatures using Keycloak’s JWKS endpoint.

In-Memory Token Storage

keycloak-js stores tokens in JavaScript memory — not localStorage or cookies. This protects against XSS-based token theft: a script injected by an attacker can’t steal tokens from memory the way it can from localStorage. The tradeoff: a full page reload triggers a silent SSO check rather than finding tokens locally.

Why Use Keycloak with Angular?

Using Keycloak with Angular offers several advantages:

No custom authentication backend required
Standards-based authentication using OAuth 2.0 and OpenID Connect
Built-in user management
Secure token handling
Easy implementation of role-based authorization
Enterprise-ready security features

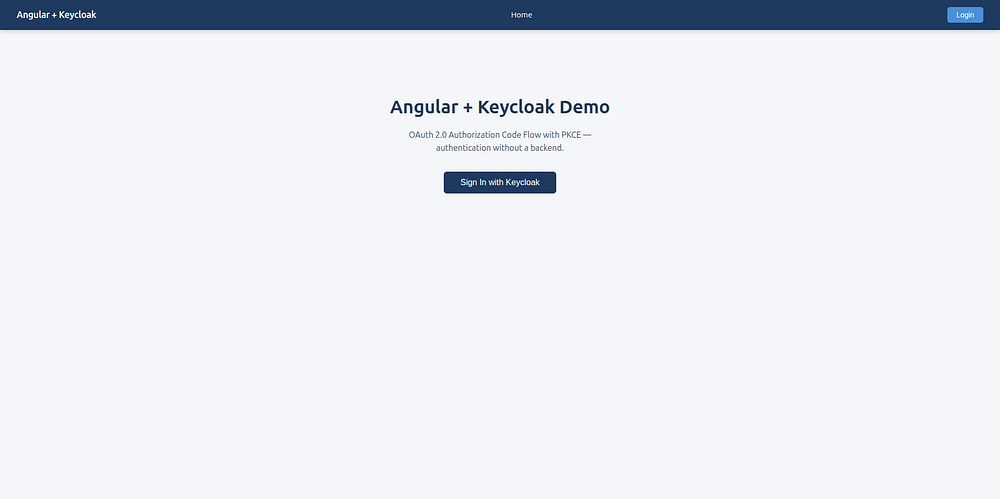

What We’re Building

┌─────────────────────────────────────────────────────────────┐
│                          Browser                            │
│                                                             │
│  ┌──────────────────────┐      ┌───────────────────────┐    │
│  │   Angular 20 SPA     │◄────►│  keycloak-js adapter  │    │
│  │                      │      └───────────┬───────────┘    │
│  │  / Home    (public)  │                  │                │
│  │  /dashboard (auth)   │                  │ OIDC / HTTPS   │

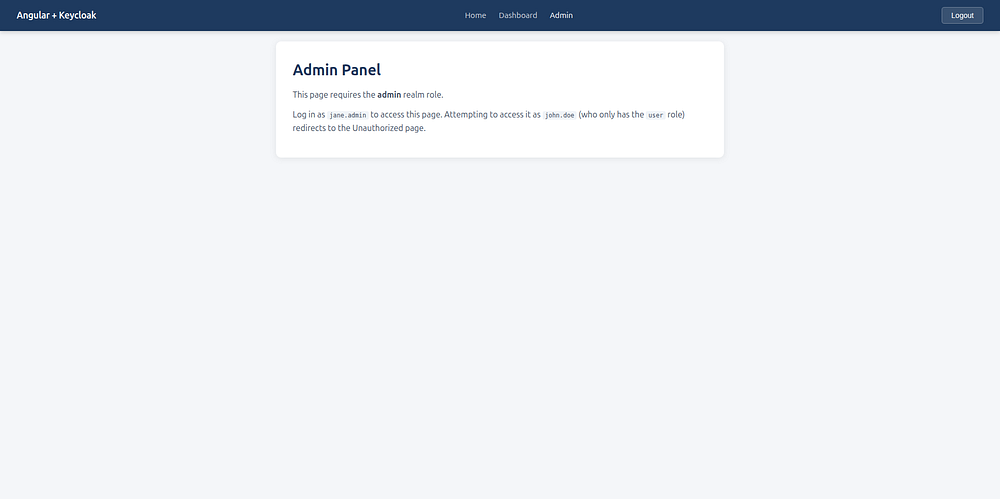

│  │  /admin    (role)    │                  │                │
│  └──────────────────────┘                  │                │
└───────────────────────────────────────────┼──────────────-──┘
                                            │
                               ┌────────────▼────────────┐
                               │     Keycloak 26         │
                               │   (Docker Compose)      │
                               │                         │
                               │  realm: angular-demo    │
                               │  client: angular-app    │
                               │  (public, PKCE, OIDC)   │
                               └─────────────────────────┘

Auth flow at a glance:

User hits a protected route — Angular redirects to Keycloak
User authenticates on Keycloak’s login page
Keycloak redirects back to the app with an authorization code
keycloak-js exchanges the code for access, refresh, and ID tokens (PKCE)
Access token is kept in memory; injected as Authorization: Bearer on API calls
keycloak-angular monitors activity and silently refreshes tokens in the background

No backend token relay needed. If you have a backend API, that service validates the JWT — not your Angular app.

Setting Up Keycloak with Docker Compose

Create docker-compose.yml in your project root:

version: '3.8'

services:
  keycloak:
    image: quay.io/keycloak/keycloak:26.6.3
    container_name: keycloak-dev
    environment:
      KC_BOOTSTRAP_ADMIN_USERNAME: admin
      KC_BOOTSTRAP_ADMIN_PASSWORD: admin
    ports:
      - "8080:8080"
    command: start-dev
    volumes:
      - keycloak_angular_data:/opt/keycloak/data
    healthcheck:
      test:
        [
          "CMD-SHELL",
          "exec 3<>/dev/tcp/localhost/8080 && echo -e 'GET /health/ready HTTP/1.1\\r\\nHost: localhost\\r\\nConnection: close\\r\\n\\r\\n' >&3 && cat <&3 | grep -q '200 OK'"
        ]
      interval: 30s
      timeout: 10s
      retries: 5
      start_period: 60s

volumes:
  keycloak_angular_data:

Start Keycloak:

docker compose up -d

Wait about 30 seconds, then open http://localhost:8080. Sign in with admin / admin.

Production note: start-dev disables TLS and uses an embedded H2 database. For production, use start with a PostgreSQL backend and proper TLS termination behind nginx or a cloud load balancer.

Configuring Keycloak

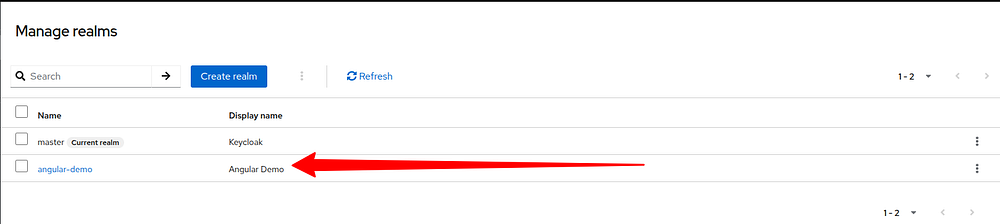

Create a Realm

A Keycloak realm is an isolated namespace managing its own users, clients, roles, and sessions — think of it as a tenant boundary.

Click the realm dropdown (top-left) → Create realm
Realm name: angular-demo
Toggle Enabled: On
Click Create

Create the Angular Client

Go to Clients → Create client
Client ID: angular-app | Client type: OpenID Connect
Click Next

On Capability config:

Client authentication: Off — this is what makes it a public client with no secret
Standard flow: On — enables Authorization Code Flow
Direct access grants: Off — disable Resource Owner Password Credentials; it’s legacy and insecure
Click Next

On Login settings:

Valid redirect URIs: http://localhost:4200/*
Valid post logout redirect URIs: http://localhost:4200/*
Web origins: http://localhost:4200
Click Save

Web Origins configures CORS. Keycloak rejects token requests from origins not on this list. Misconfiguring this is the most common source of CORS errors.

Enable PKCE

On the client’s Settings tab, enable Require PKCE and set the PKCE Method to S256. While Keycloak 21+ enables this by default for public clients, explicitly configuring it helps prevent unintended downgrades and ensures the setting remains enforced.

Create Realm Roles

Go to Realm roles → Create role → Name: user → Save
Repeat for role: admin

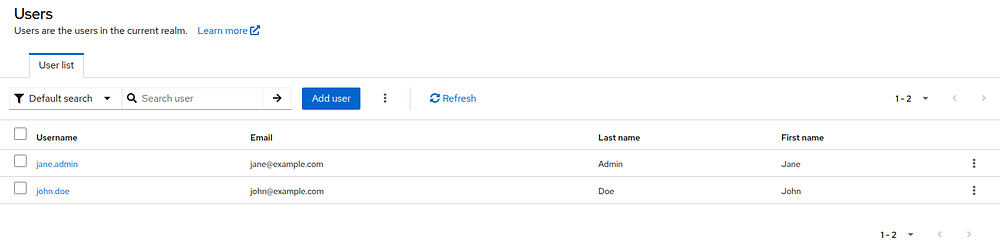

Create Test Users

john.doe (regular user):

Users → Create new user
Username: john.doe | Email: john@example.com | Email verified: On
Credentials tab → Set password: password | Temporary: Off
Role mapping tab → Assign role → user

jane.admin (administrator):

Create user jane.admin | Email: jane@example.com | Email verified: On
Set password: password | Temporary: Off
Assign roles: user and admin

Setting Up the Angular Project

Creating the Angular Project

ng new angular-keycloak-app \
  --style=scss \
  --routing \
  --ssr=false

cd angular-keycloak-app

Install Keycloak dependencies:

npm install keycloak-angular@^19.0.1 keycloak-js@^26.1.0

Check the keycloak-angular compatibility matrix for the exact version aligned with your Angular release. The library follows Angular’s major versioning starting from v18.

Our project structure will look like this:

angular-keycloak-app/
├── public/
│   └── silent-check-sso.html       ← SSO iframe redirect target
├── src/
│   ├── app/
│   │   ├── core/
│   │   │   ├── guards/
│   │   │   │   └── auth.guard.ts   ← Route guard with RBAC
│   │   │   └── services/
│   │   │       └── auth.service.ts ← Keycloak wrapper
│   │   ├── pages/
│   │   │   ├── home/
│   │   │   ├── dashboard/
│   │   │   ├── admin/
│   │   │   └── unauthorized/
│   │   ├── shared/
│   │   │   └── navbar/
│   │   ├── app.component.ts
│   │   ├── app.config.ts           ← provideKeycloak() bootstrap
│   │   ├── app.routes.ts
│   │   └── keycloak.config.ts      ← Keycloak provider factory
│   └── environments/
│       ├── environment.ts
│       └── environment.prod.ts
└── docker-compose.yml

Environment Configuration

src/environments/environment.ts:

export const environment = {
  production: false,
  keycloak: {
    url: 'http://localhost:8080',
    realm: 'angular-demo',
    clientId: 'angular-app',
  },
};

src/environments/environment.prod.ts:

export const environment = {
  production: true,
  keycloak: {
    url: 'https://auth.yourdomain.com',
    realm: 'angular-demo',
    clientId: 'angular-app',
  },
};

Confirm that angular.json contains the file replacement under configurations.production:

"fileReplacements": [
  {
    "replace": "src/environments/environment.ts",
    "with": "src/environments/environment.prod.ts"
  }
]

Angular’s build system swaps the file automatically when you build with --configuration production.

Silent SSO Configuration

When a user refreshes the page, tokens are gone from memory. The silent SSO check lets keycloak-js verify an existing Keycloak session in a hidden iframe — restoring the authenticated state without a full redirect.

Create the redirect target:

public/silent-check-sso.html:

<!doctype html>
<html>
  <body>
    <script>
      parent.postMessage(location.href, location.origin);
    </script>
  </body>
</html>

Files in the public/ directory (Angular 17+ default) are served at the root path. The silentCheckSsoRedirectUri must point to {origin}/silent-check-sso.html.

If your project uses the older src/assets/ convention instead of public/, place the file at src/assets/silent-check-sso.html and update the URI to {origin}/assets/silent-check-sso.html.

Keycloak Provider Configuration

This is the heart of the integration. Create a factory function that encapsulates all Keycloak provider configuration:

src/app/keycloak.config.ts:

import {
  createInterceptorCondition,
  IncludeBearerTokenCondition,
  provideKeycloak,
  withAutoRefreshToken,
  AutoRefreshTokenService,
  UserActivityService,
  INCLUDE_BEARER_TOKEN_INTERCEPTOR_CONFIG,
} from 'keycloak-angular';
import { environment } from '../environments/environment';

/**
 * Only attach bearer tokens to requests targeting our backend API.
 * Update this pattern to match your actual API URL.
 */
const apiCondition = createInterceptorCondition<IncludeBearerTokenCondition>({
  urlPattern: /^(http:\/\/localhost:3000)(\/.*)?$/i,
});

export const provideKeycloakAngular = () =>
  provideKeycloak({
    config: {
      url: environment.keycloak.url,
      realm: environment.keycloak.realm,
      clientId: environment.keycloak.clientId,
    },
    initOptions: {
      onLoad: 'check-sso',
      silentCheckSsoRedirectUri: `${window.location.origin}/silent-check-sso.html`,
      checkLoginIframe: false,
      pkceMethod: 'S256',
    },
    features: [
      withAutoRefreshToken({
        onInactivityTimeout: 'logout',
        sessionTimeout: 300000,
      }),
    ],
    providers: [
      AutoRefreshTokenService,
      UserActivityService,
      {
        provide: INCLUDE_BEARER_TOKEN_INTERCEPTOR_CONFIG,
        useValue: [apiCondition],
      },
    ],
  });

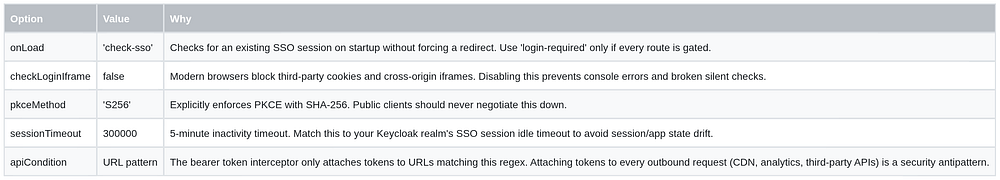

Every option here is intentional:

Application Bootstrap

src/app/app.config.ts:

import { ApplicationConfig, provideZoneChangeDetection } from '@angular/core';
import { provideRouter, withComponentInputBinding } from '@angular/router';
import { provideHttpClient, withInterceptors } from '@angular/common/http';
import { includeBearerTokenInterceptor } from 'keycloak-angular';

import { routes } from './app.routes';
import { provideKeycloakAngular } from './keycloak.config';

export const appConfig: ApplicationConfig = {
  providers: [
    provideZoneChangeDetection({ eventCoalescing: true }),
    provideRouter(routes, withComponentInputBinding()),
    provideHttpClient(
      withInterceptors([includeBearerTokenInterceptor])
    ),
    provideKeycloakAngular(),
  ],
};

includeBearerTokenInterceptor is a functional HTTP interceptor from keycloak-angular. It reads the INCLUDE_BEARER_TOKEN_INTERCEPTOR_CONFIG token — the list of conditions you registered in keycloak.config.ts — and injects Authorization: Bearer <token> only on matching requests.

No APP_INITIALIZER boilerplate. provideKeycloak() handles initialization internally, which is the key improvement in keycloak-angular v18+.

Auth Service

Scattering raw Keycloak API calls across components makes refactoring painful and testing harder. Wrap everything in a service:

src/app/core/services/auth.service.ts:

import { Injectable, inject, Signal, computed } from '@angular/core';
import Keycloak from 'keycloak-js';
import {
  KEYCLOAK_EVENT_SIGNAL,
  KeycloakEventType,
  typeEventArgs,
  ReadyArgs,
} from 'keycloak-angular';

export interface UserProfile {
  username: string;
  email: string;
  firstName: string;
  lastName: string;
  roles: string[];
}

@Injectable({ providedIn: 'root' })
export class AuthService {
  private readonly keycloak = inject(Keycloak);
  private readonly keycloakSignal = inject(KEYCLOAK_EVENT_SIGNAL);

  /**
   * Reactive signal that reflects the current authentication state.
   * Updates automatically on Keycloak lifecycle events — no subscriptions needed.
   */
  readonly isAuthenticated: Signal<boolean> = computed(() => {
    const event = this.keycloakSignal();
    switch (event.type) {
      case KeycloakEventType.Ready:
        return typeEventArgs<ReadyArgs>(event.args);
      case KeycloakEventType.AuthSuccess:
        return true;
      case KeycloakEventType.AuthLogout:
      case KeycloakEventType.AuthRefreshError:
      case KeycloakEventType.AuthError:
        return false;
      default:
        return this.keycloak.authenticated ?? false;
    }
  });

  async login(redirectPath = '/dashboard'): Promise<void> {
    await this.keycloak.login({
      redirectUri: `${window.location.origin}${redirectPath}`,
    });
  }

  async logout(): Promise<void> {
    await this.keycloak.logout({
      redirectUri: window.location.origin,
    });
  }

  async getProfile(): Promise<UserProfile | null> {
    if (!this.keycloak.authenticated) return null;

    const profile = await this.keycloak.loadUserProfile();
    return {
      username: profile.username ?? '',
      email: profile.email ?? '',
      firstName: profile.firstName ?? '',
      lastName: profile.lastName ?? '',
      roles: this.getRoles(),
    };
  }

  getRoles(): string[] {
    return this.keycloak.realmAccess?.roles ?? [];
  }

  hasRole(role: string): boolean {
    return this.keycloak.hasRealmRole(role);
  }

  hasAnyRole(...roles: string[]): boolean {
    return roles.some(role => this.keycloak.hasRealmRole(role));
  }
}

The isAuthenticated computed signal reacts to Keycloak lifecycle events via KEYCLOAK_EVENT_SIGNAL. Two events matter most:

KeycloakEventType.Ready — fires when the adapter initializes; args is a boolean indicating whether a session was already active.
KeycloakEventType.AuthLogout — fires when the session ends (user logout or Keycloak session expiry).

Components consume isAuthenticated() as a plain signal — no subscriptions, no ngOnInit polling, automatic change detection.

Auth Guard

src/app/core/guards/auth.guard.ts:

import { inject } from '@angular/core';
import { CanActivateFn, Router, ActivatedRouteSnapshot } from '@angular/router';
import Keycloak from 'keycloak-js';

export const authGuard: CanActivateFn = async (route: ActivatedRouteSnapshot) => {
  const keycloak = inject(Keycloak);
  const router = inject(Router);

  if (!keycloak.authenticated) {
    await keycloak.login({
      redirectUri: window.location.href,
    });
    return false;
  }

  const requiredRoles: string[] = route.data['roles'] ?? [];
  if (requiredRoles.length === 0) return true;

  const hasRequiredRole = requiredRoles.every(role => keycloak.hasRealmRole(role));

  if (!hasRequiredRole) {
    router.navigate(['/unauthorized']);
    return false;
  }

  return true;
};

This guard handles two distinct scenarios:

Not authenticated → redirects to Keycloak login, preserving the intended URL via redirectUri: window.location.href
Authenticated but missing roles → navigates to /unauthorized (not back to login — the user is authenticated, just not authorized)

The distinction matters for UX: sending an authenticated user to the login page is confusing and breaks the SSO flow.

Route Configuration

src/app/app.routes.ts:

import { Routes } from '@angular/router';
import { authGuard } from './core/guards/auth.guard';

export const routes: Routes = [
  {
    path: '',
    loadComponent: () =>
      import('./pages/home/home.component').then(m => m.HomeComponent),
  },
  {
    path: 'dashboard',
    loadComponent: () =>
      import('./pages/dashboard/dashboard.component').then(m => m.DashboardComponent),
    canActivate: [authGuard],
  },
  {
    path: 'admin',
    loadComponent: () =>
      import('./pages/admin/admin.component').then(m => m.AdminComponent),
    canActivate: [authGuard],
    data: { roles: ['admin'] },
  },
  {
    path: 'unauthorized',
    loadComponent: () =>
      import('./pages/unauthorized/unauthorized.component').then(m => m.UnauthorizedComponent),
  },
  {
    path: '**',
    redirectTo: '',
  },
];

All routes use loadComponent for lazy loading. Keycloak initializes once at app startup via provideKeycloak() — not per-route. The guard runs against the already-initialized Keycloak state, so there’s no repeated async initialization overhead.

Role requirements are passed through data.roles — a clean separation between routing structure and authorization policy.

Running and Testing

Start Keycloak (if not running):

docker compose up -d

Start Angular:

ng serve

Open http://localhost:4200 and walk through these scenarios:

Scenario 1 — Public home page Navigate to http://localhost:4200. No redirect. The Login button is visible.

Scenario 2 — Direct protected URL access (unauthenticated). Navigate directly to http://localhost:4200/dashboard. The guard triggers, browser redirects to Keycloak login, and after authentication Keycloak sends you back to /dashboard.

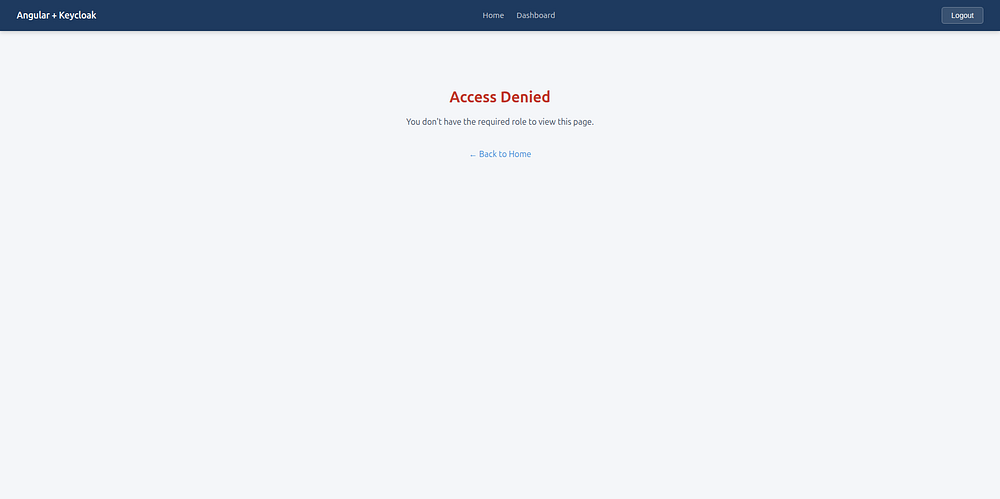

Scenario 3 — Regular user access. Log in as john.doe / password. Dashboard loads with user profile and user role badge. The Admin nav link is absent. Navigate to http://localhost:4200/admin — the guard redirects to /unauthorized.

Scenario 4 — Admin user access Logout. Log in as jane.admin / password. The Admin nav link appears. Navigate to /admin — access granted.

Scenario 5 — Session persistence across refresh. Log in, then refresh the page. You should remain authenticated via the silent SSO check (a brief Loading... flicker on the dashboard is normal while the iframe check completes).

Performance Considerations

Silent SSO overhead: The check-sso init option fires a hidden iframe on every cold page load. This adds one Keycloak round-trip on startup. For apps where most users are already authenticated, this is a worthwhile tradeoff — no full redirect required. For anonymous-first apps with occasional auth, consider lazy-checking only when a protected route is hit.
Token refresh timing: withAutoRefreshToken uses sessionTimeout (inactivity-based). Align this with Keycloak’s SSO Session Idle setting in the realm. If Keycloak expires the session before the Angular app detects inactivity, the next token refresh attempt will fail silently and the user will find themselves logged out unexpectedly.
Lazy loading: All routes use loadComponent, so component code is loaded on demand. Keycloak initialization happens once at bootstrap — not per-route load. The guard checks the already-initialized Keycloak state synchronously (after the await keycloak.login() redirect path).
JWKS caching in your backend: When your API validates tokens, cache Keycloak’s JWKS response. Fetching {keycloak-url}/realms/{realm}/protocol/openid-connect/certs on every request is expensive and creates a hard dependency on Keycloak availability in the request path.

Common Pitfalls

CORS errors on token requests Symptom: 401 Unauthorized or Access-Control-Allow-Origin in the console. Cause: Web origins not configured in the Keycloak client. Fix: Add http://localhost:4200 to Web Origins in the Keycloak client configuration. In production, add your actual domain. Do not use * — Keycloak ignores wildcard web origins for security reasons.
Infinite redirect loop Symptom: Browser keeps cycling between the app and Keycloak login. Cause: The post-login redirect URI doesn’t match Valid redirect URIs in the client. Fix: Confirm http://localhost:4200/* (with wildcard) is listed. Keycloak exact-matches redirect URIs and the * wildcard must be explicit.
Bearer token not sent to API Symptom: API requests have no Authorization header. Cause: The urlPattern in createInterceptorCondition doesn’t match the API URL. Fix: Test your regex at regex101.com before deploying. Remember the interceptor applies the pattern against the full URL including protocol.
Roles missing from token Symptom: keycloak.hasRealmRole('admin') returns false even though the user has the role. Cause: Realm roles (realm_access.roles) and client roles (resource_access.<clientId>.roles) are in different locations in the JWT. Fix: Use keycloak.hasRealmRole(role) for realm-level roles. Use keycloak.hasResourceRole(role, 'angular-app') for client-specific roles. Check keycloak.tokenParsed in the browser console to confirm which path your roles are in.
Silent check broken after deployment Symptom: Silent SSO check fails with origin mismatch or Blocked a frame with origin... errors. Cause: silent-check-sso.html is not being served, or the deployment origin doesn’t match window.location.origin at build time. Fix: Verify the file is present in the deployed public/ output. Confirm the Angular app’s domain exactly matches what’s registered in Keycloak’s Valid redirect URIs and Web Origins.
checkLoginIframe console errors Symptom: [Keycloak] Error during login iframe initialization in the console. Cause: Browser blocking cross-origin iframe communication (common in Firefox with strict privacy settings, Safari with ITP). Fix: Keep checkLoginIframe: false. Token refresh still works via the refresh token — the login iframe check is redundant when check-sso is configured.

Conclusion

🏁 Well done !!. In this post, we learned how to integrate Keycloak into an Angular SPA without writing a single line of backend code.

Integrating Keycloak with Angular is one of the simplest ways to implement secure authentication and authorization in a Single Page Application.

The complete source code is available on GitHub.

Support me through GitHub Sponsors.

Thank you for reading!! See you in the next post.

References

👉 Link to Medium blog
